Basic

In Oinone Kunlun, we derive a series of Widget components based on VueWidget. This chapter provides a detailed introduction to some "abstract" components.

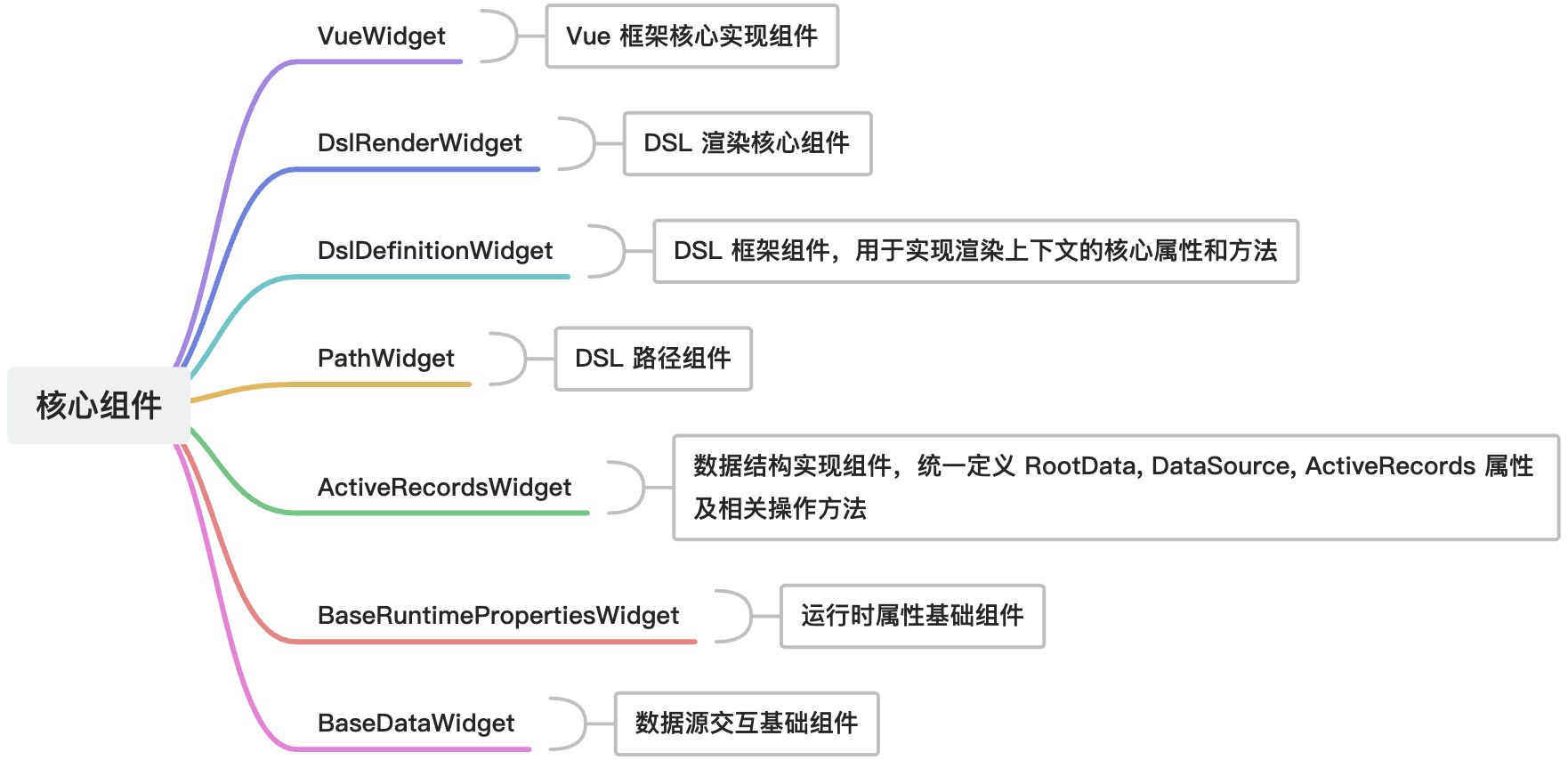

Ⅰ、Core Component Map

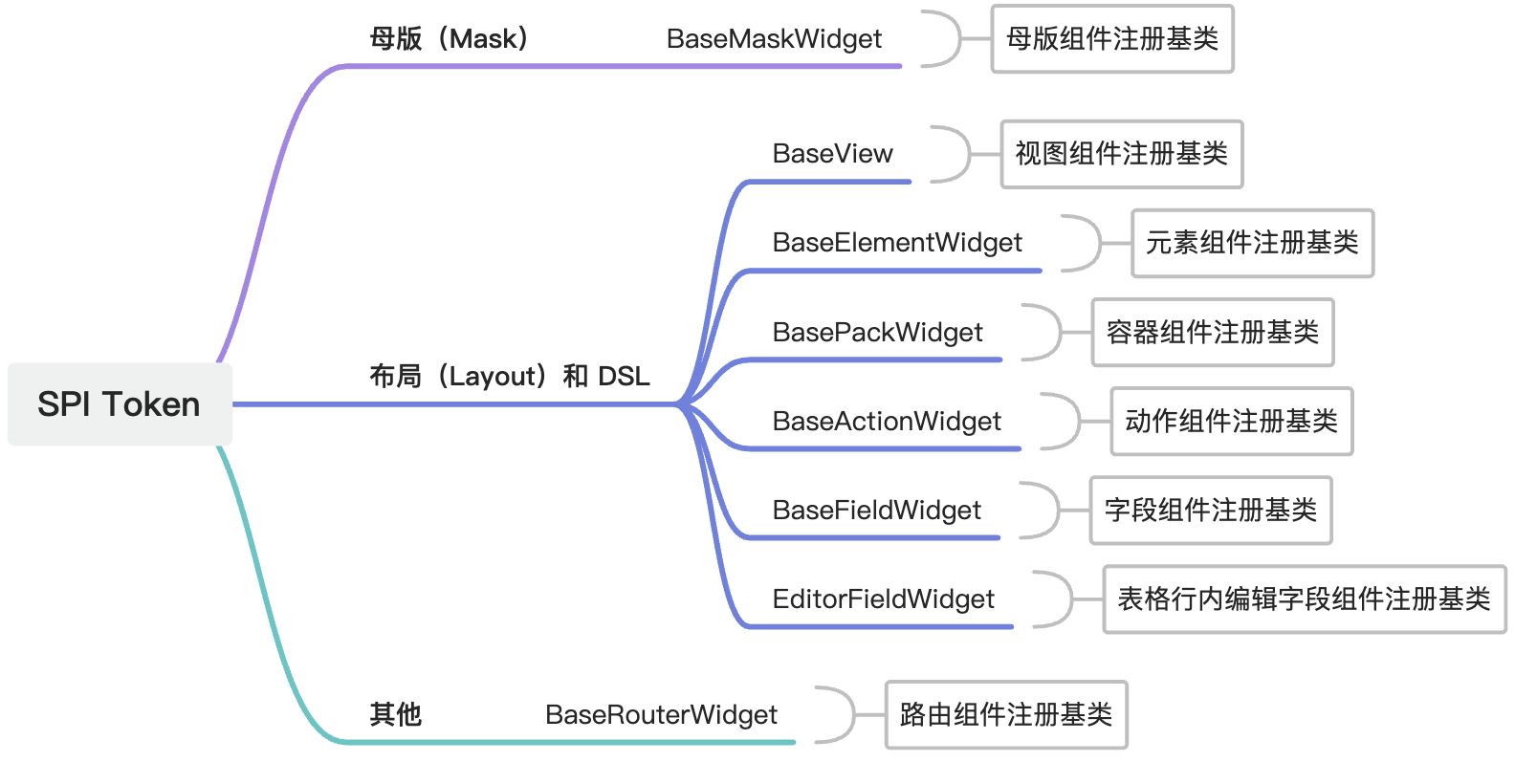

Ⅱ、SPI Token Component Map

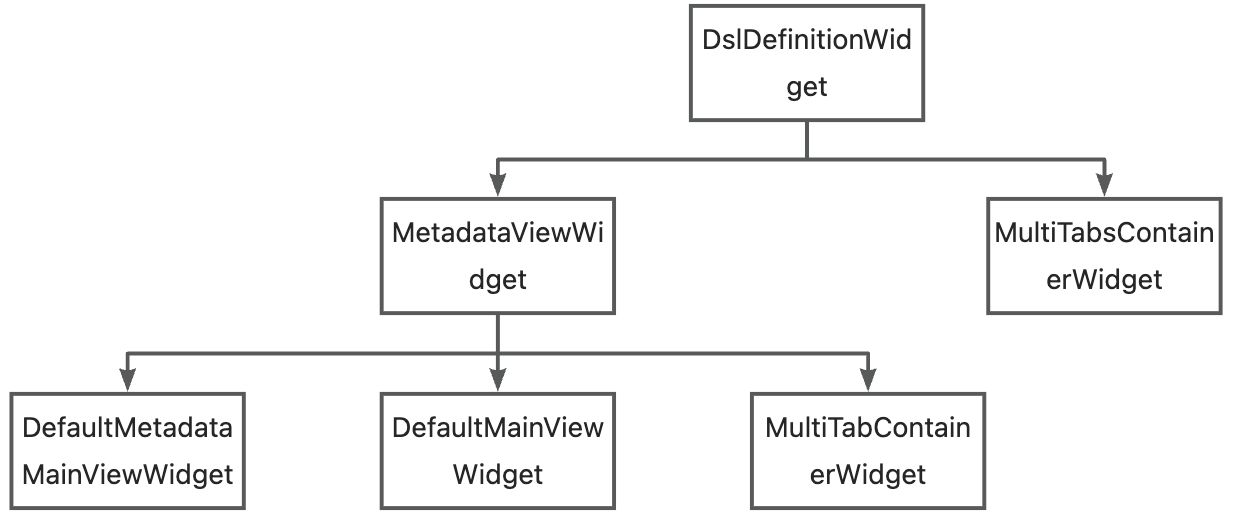

Ⅲ、Metadata Component Map

  • MetadataViewWidget: Metadata view component containing view context data. Used to create RuntimeContext through views, fields, or actions.
  • DefaultMetadataMainViewWidget: Metadata main view component. Creates the first MetadataRuntimeContext for the entire page by listening to route changes and renders the Mask.
  • DefaultMainViewWidget: Main content distribution area rendering component, used to create RootRuntimeContext and render Layout and DSL.
  • MultiTabsContainerWidget and MultiTabContainerWidget: Multi-tab container component and tab component.

Ⅳ、Reference List

（Ⅰ）Core Components

1、VueWidget

Inheritance: Widget

Properties:

  • opt: Component proxy instance for accessing Vue instance properties. (VueWidget | undefined)

Methods:

createWidget

  • Function Description: Creates a child component under the current component node.
  • Type: <T extends Widget>(constructor: WidgetConstructor<T['config'], T>, slotName?: string, initConfig?: T['config'], specifiedIndex?: number, resolveNewCode?: boolean) => T
  • Parameters:
    • constructor: Child component constructor.
    • slotName: Slot name.
    • initConfig: Child component initialization configuration.
    • specifiedIndex: Specified position of the child component in the parent node.
    • resolveNewCode: Whether to update the node identifier.
  • Return Value: Child component instance.

dispose

  • Function Description: Destroys the component instance and cleans up resources.
  • Type: (force?: boolean) => void
  • Parameters:
    • force: Whether to force destruction (optional, default false).

forceUpdate

  • Function Description: Forces an update of the component.
  • Type: () => void

getChildrenInstance

  • Function Description: Obtains an array of child component instances (inherited from Widget).
  • Type: () => Widget[]
  • Return Value: Array of child component instances.

getOperator

  • Function Description: Obtains the component's reactive operation object.
  • Type: <T extends VueWidget>() => T
  • Return Value: Reactive instance of the component.

setComponent

  • Function Description: Sets the Vue component or HTML tag rendered by the current component.
  • Type: (component: WidgetComponent) => void
  • Parameters:
    • component: Target component.

setMixinComponent

  • Function Description: Sets the mixed-in Vue component.
  • Type: (component: Component | undefined) => void
  • Parameters:
    • component: Mixed-in component instance.

translate

  • Function Description: Internationalization translation (reactive method).
  • Type: (key: string, values?: { [key: string]: any }) => string
  • Parameters:
    • key: Translation key.
    • values: Replacement parameters (optional).
  • Return Value: Translated string.

translateByI18n

  • Function Description: Performs internationalization translation via i18n (reactive method).
  • Type: (key: string) => string
  • Parameters:
    • key: Translation key.
  • Return Value: Translated string.

2、DslRenderWidget

Inheritance: VueWidget

Properties:

  • internal: Identifies whether the component is an internal component, affecting slot rendering logic. (boolean)
  • slotName: Slot name used by the component in the parent component. (string | undefined)
  • template: DSL template definition currently being rendered. (DslDefinition | undefined)

Methods:

getDsl

  • Function Description: Obtains the DSL definition of the current component, returning the default value if not set.
  • Type: () => DslDefinition
  • Return Value: DSL definition object.

getSlotName

  • Function Description: Obtains the slot name of the component in the parent component.
  • Type: () => string | undefined
  • Return Value: Slot name.

initialize

  • Function Description: Initializes component properties and configures DSL-related parameters.
  • Type: (props: Props) => this
  • Parameters:
    • props: Component properties, must conform to the DslRenderWidgetProps interface.
  • Return Value: The component instance itself (supports chaining).

render

  • Function Description: Renders the component, selecting different rendering strategies based on the internal property.
  • Type: (ctx?: Record<string, any>, slots?: Slots) => VNode | VNode[]
  • Parameters:
    • ctx: Rendering context object.
    • slots: Vue slot object.
  • Return Value: Rendered virtual nodes.

3、DslDefinitionWidget

Inheritance: DslRenderWidget

Properties:

  • allInvisible: Determines whether the component and its children are all invisible. (boolean | undefined)
  • automatic: Whether it is an automatic component. (boolean)
  • currentHandle: Handle of the current component, automatically set during initialization. (string)
  • inline: Whether it is an inline component. (boolean | undefined)
  • invisible: Determines whether the component is invisible (considering its own and parent states). (boolean)
  • invisibleState: Internally maintained invisible state. (boolean)
  • lastedInvisibleState: Last invisible state, used to detect changes. (boolean | undefined)
  • metadataHandle: Handle of the metadata view. (string | undefined)
  • parentInvisible: Invisible state of the parent component. (boolean | undefined)
  • parentInvisibleProvider: Invisible state provided to child components (current component or parent state). (boolean)
  • rootHandle: Handle of the root component (generally a view component). (string | undefined)

Methods:

allMounted

  • Function Description: Called after all child components are mounted, resetting the invisible state.
  • Type: () => void

childrenInvisibleProcess

  • Function Description: Processes the invisible state of child components, determining if all are invisible.
  • Type: () => boolean
  • Return Value: Whether all child components are invisible.

getCurrentHandle

  • Function Description: Obtains the handle of the current component.
  • Type: () => string
  • Return Value: Component handle.

getMetadataHandle

  • Function Description: Obtains the handle of the metadata view.
  • Type: () => string | undefined
  • Return Value: Metadata handle.

getMetadataRuntimeContext &&notUse

  • Function Description: Obtains the runtime context of the metadata.
  • Type: () => RuntimeContext
  • Return Value: Runtime context object.
  • Exception: Throws an error if the metadata context is invalid.

getRootComputeContext &&notUse

  • Function Description: Obtains the compute context of the root component.
  • Type: () => ComputeContext | undefined
  • Return Value: Compute context object or undefined.

getRootHandle

  • Function Description: Obtains the handle of the root component.
  • Type: () => string | undefined
  • Return Value: Root component handle.

getRootRuntimeContext &&notUse

  • Function Description: Obtains the runtime context of the root component.
  • Type: () => RuntimeContext
  • Return Value: Runtime context object.
  • Exception: Throws an error if the root context is invalid.

getRootViewRuntimeContext &&notUse

  • Function Description: Obtains the runtime context of the root view and its fields.
  • Type: () => { runtimeContext: RuntimeContext; fields: RuntimeModelField[] }
  • Return Value: Object containing the runtime context and field array.

invisibleProcess

  • Function Description: Processes the invisible property value, converting it to a boolean type.
  • Type: (invisible: boolean | string) => boolean
  • Parameters:
    • invisible: Invisible property value (boolean or string).
  • Return Value: Converted boolean value.

resetInvisible

  • Function Description: Resets the invisible state, taking effect when allInvisible is true.
  • Type: () => void

resetParentInvisible

  • Function Description: Recursively resets the invisible state of parent components.
  • Type: () => void

4、PathWidget

Inheritance: DslDefinitionWidget

Properties:

  • currentPath: Current specified path. (string | undefined)
  • parentPath: Parent path, obtained via injection. (string | undefined)
  • path: Complete path, dynamically generated based on the parent path, subpath, and subindex. (string)
  • subIndex: Current subpath index. (string | number | undefined)
  • subPath: Current subpath. (string | undefined)

5、ActiveRecordsWidget

Inheritance: PathWidget<Props>

Properties:

  • currentActiveRecords: Current data records, passing through parent data if nonexistent. (ActiveRecord[] | undefined)
  • currentDataSource: Current data source, supporting data operations and caching. (ActiveRecord[] | null | undefined)
  • currentRootData: Current root data, preferring self-configuration, otherwise passing through parent data. (ActiveRecord[] | undefined)
  • parentActiveRecords: Parent data records. (ActiveRecord[] | undefined)
  • parentDataSource: Parent data source. (ActiveRecord[] | undefined)
  • parentReloadActiveRecords: Parent method to reload data records. (ReloadActiveRecordsFunction | undefined)
  • parentReloadDataSource: Parent method to reload the data source. (ReloadActiveRecordsFunction | undefined)
  • parentPushActiveRecords: Parent method to add data records. (PushActiveRecordsFunction | undefined)
  • parentPushDataSource: Parent method to add to the data source. (PushActiveRecordsFunction | undefined)
  • parentUpdateActiveRecords: Parent method to update data records. (UpdateActiveRecordsFunction | undefined)
  • parentUpdateDataSource: Parent method to update the data source. (UpdateActiveRecordsFunction | undefined)
  • parentDeleteActiveRecords: Parent method to delete data records. (DeleteActiveRecordsFunction | undefined)
  • parentDeleteDataSource: Parent method to delete the data source. (DeleteActiveRecordsFunction | undefined)
  • parentFlushActiveRecords: Parent method to flush data records. (FlushActiveRecordsFunction | undefined)
  • parentFlushDataSource: Parent method to flush the data source. (FlushActiveRecordsFunction | undefined)
  • parentRootData: Parent root data. (ActiveRecord[] | undefined)
  • rootData: Root data provided to下级 (current or parent data). (ActiveRecord[] | undefined)
  • submitCache: Submission cache manager (obtained via metadata context). (SubmitCacheManager | undefined)
  • dataSource: Data source provided to下级 (current or parent data). (ActiveRecord[] | undefined)
  • activeRecords: Data records provided to下级 (current or parent data). (ActiveRecord[] | undefined)

Methods:

createDataSourceByEntity

  • Function Description: Creates a data source from an entity and merges it into the current data source.
  • Type: (records: ActiveRecords, predict?: PushActiveRecordsPredict) => void
  • Parameters:
    • records: Data to create.
    • predict: Push judgment function (optional).

deleteActiveRecords

  • Function Description: Deletes data records by index.
  • Type: (recordIndexes: number[]) => void
  • Parameters:
    • recordIndexes: Array of data indices.

deleteActiveRecordsByEntity

  • Function Description: Deletes data records by entity condition.
  • Type: (records: ActiveRecords, predict?: DeleteActiveRecordsByEntityPredict) => void
  • Parameters:
    • records: Data for deletion conditions.
    • predict: Deletion judgment function (optional).

deleteDataSource

  • Function Description: Deletes the data source by index.
  • Type: (recordIndexes: number[]) => void
  • Parameters:
    • recordIndexes: Array of data indices.

deleteDataSourceByEntity

  • Function Description: Deletes the data source by entity condition.
  • Type: (records: ActiveRecords, predict?: DeleteActiveRecordsByEntityPredict) => void
  • Parameters:
    • records: Data for deletion conditions.
    • predict: Deletion judgment function (optional).

flushActiveRecords

  • Function Description: Flushes data records (clears current data or submits upward).
  • Type: () => void

flushDataSource

  • Function Description: Flushes the data source (submits upward).
  • Type: () => void

getCurrentActiveRecords

  • Function Description: Obtains current data records.
  • Type: () => ActiveRecord[] | undefined
  • Return Value: Current data record array or undefined.

getCurrentDataSource

  • Function Description: Obtains the current data source.
  • Type: () => ActiveRecord[] | null | undefined
  • Return Value: Current data source array, null, or undefined.

getCurrentRootData

  • Function Description: Obtains current root data.
  • Type: () => ActiveRecord[] | undefined
  • Return Value: Current root data array or undefined.

reloadActiveRecords

  • Function Description: Reloads data records into the current instance.
  • Type: (records?: ActiveRecords) => void
  • Parameters:
    • records: Data to load (optional).

reloadDataSource

  • Function Description: Reloads the data source into the current instance.
  • Type: (records?: ActiveRecords) => void
  • Parameters:
    • records: Data to load (optional).

pushActiveRecords

  • Function Description: Adds data to the current data records.
  • Type: (records: ActiveRecords, predict?: PushActiveRecordsPredict) => void
  • Parameters:
    • records: Data to add.
    • predict: Push judgment function (optional).

pushDataSource

  • Function Description: Adds data to the current data source.
  • Type: (records: ActiveRecords, predict?: PushActiveRecordsPredict) => void
  • Parameters:
    • records: Data to add.
    • predict: Push judgment function (optional).

updateActiveRecords

  • Function Description: Updates data records by index.
  • Type: (records: UpdateEntity[]) => void
  • Parameters:
    • records: Array of update entities.

updateActiveRecordsByEntity

  • Function Description: Updates data records by entity condition.
  • Type: (records: ActiveRecords, predict?: UpdateActiveRecordsByEntityPredict) => void
  • Parameters:
    • records: Update data.
    • predict: Update judgment function (optional).

updateDataSource

  • Function Description: Updates the data source by index.
  • Type: (records: UpdateEntity[]) => void
  • Parameters:
    • records: Array of update entities.

updateDataSourceByEntity

  • Function Description: Updates the data source by entity condition.
  • Type: (records: ActiveRecords, predict?: UpdateActiveRecordsByEntityPredict) => void
  • Parameters:
    • records: Update data.
    • predict: Update judgment function (optional).

6、BaseRuntimePropertiesWidget

Inheritance: ActiveRecordsWidget

Properties:

  • invisible: Determines whether the component is invisible; if the current client type is not supported, it is force-hidden. (boolean)
  • isSupportCurrentClient: Determines whether the current client type is supported. (boolean)
  • isSupportMobileClient: Determines whether mobile clients are supported. (boolean)
  • isSupportPCClient: Determines whether PC clients are supported. (boolean)
  • loading: Loading state indicator, controlled by the load method. (boolean)
  • model: Runtime model, obtained from the root runtime context. (RuntimeModel)
  • openerActiveRecords: Active records of the component that opened the current view. (ActiveRecord[] | undefined)
  • openerDataSource: Data source of the component that opened the current view. (ActiveRecord[] | undefined)
  • scene: Current scene, obtained from URL parameters or view actions. (string)
  • supportClientTypes: List of supported client types. (ViewClientType[])
  • urlParameters: URL query parameters; inline components return an empty object. (UrlQueryParameters)
  • view: Runtime view. (RuntimeView | undefined)
  • viewAction: Runtime view action. (RuntimeViewAction | undefined)
  • initialValue: Initial view value. (ActiveRecord[] | undefined)
  • initialContext: Initial view context, preferentially obtained from URL parameters. (Record<string, unknown> | undefined)
  • usingLoading: Whether to use the loading state, enabled by default. (boolean)

Methods:

getUrlParameters

  • Function Description: Obtains URL query parameters.
  • Type: () => UrlQueryParameters
  • Return Value: URL parameter object.

load

  • Function Description: Executes an asynchronous operation and manages the loading state.
  • Type: <R>(fn: (...args) => R, ...args) => Promise<R>
  • Parameters:
    • fn: Function to execute.
    • args: Function parameters.
  • Return Value: Promise of the function execution result.

7、BaseDataWidget

Inheritance: BaseRuntimePropertiesWidget

Properties:

  • currentDataPath: Current specified data path. (string | undefined)
  • dataPath: Complete data path, composed of the parent path, subpath, and index. (string)
  • itemData: Data interaction identifier, preferentially using the data field in DSL, otherwise using name. (string)
  • itemName: Data submission identifier, preferentially using the name field in DSL, otherwise using data. (string)
  • parentDataPath: Parent data path. (string | undefined)
  • subDataIndex: Current data subpath index. (string | number | undefined)
  • subDataPath: Current data subpath, defaulting to itemData. (string | undefined)

（Ⅱ）SPI Token Components

1、BaseMaskWidget

Inheritance: DslRenderWidget

Properties:

  • automatic: Whether it is an automatic component. (boolean)
  • classNames: Array of class names for the component, obtained from DSL. (string[] | undefined)
  • currentHandle: Handle of the current component, automatically set during initialization. (string)
  • loading: Loading state indicator. (boolean)
  • style: CSS style of the component, converted from DSL. (CSSStyle | undefined)

Methods:

getCurrentHandle

  • Function Description: Obtains the handle of the current component.
  • Type: () => string
  • Return Value: Component handle.

getUrlParameters

  • Function Description: Obtains URL query parameters.
  • Type: () => Record<string, unknown>
  • Return Value: URL parameter object.

load

  • Function Description: Executes an asynchronous operation and manages the loading state.
  • Type: <R>(fn: (...args) => R, ...args) => Promise<R>
  • Parameters:
    • fn: Function to execute.
    • args: Function parameters.
  • Return Value: Promise of the function execution result.

render

  • Function Description: Renders the component, processing slot data.
  • Type: (ctx?: Record<string, unknown>, slots?: Slots) => VNode | VNode[]
  • Parameters:
    • ctx: Rendering context.
    • slots: Slot content.
  • Return Value: Rendered virtual nodes.

2、BaseView

Inheritance: BaseRuntimePropertiesWidget

Properties:

  • parentViewType: Parent view type. (ViewType | undefined)
  • viewMode: Current view mode (provided to下级). (ViewMode)
  • viewType: View type. (ViewType | undefined)
  • validatorCallChaining: Chaining call object during validation (provided to下级). (CallChaining<boolean> | undefined)

Methods

addVisibleArea

  • Function Description: Adds a visible area.
  • Type: () => void

clearVisibleArea

  • Function Description: Clears the visible area.
  • Type: () => void

cloneParentDataSource

  • Function Description: Clones the parent data source.
  • Type: () => void

getViewMode

  • Function Description: Obtains the current view mode.
  • Type: () => ViewMode

setViewMode

  • Function Description: Sets the current view mode.
  • Type: (mode: ViewMode | undefined) => void
  • Parameters:
    • mode: View mode.

3、BaseElementWidget

Inheritance: BaseRuntimePropertiesWidget

Properties:

  • parentViewType: Parent view type. (ViewType | undefined)
  • viewType: View type. (ViewType | undefined)

4、BasePackWidget

Inheritance: BaseRuntimePropertiesWidget

Properties:

  • cols: Number of columns, preferentially using self-configuration, otherwise inheriting from the parent or defaulting to 1. (number)
  • defaultAllInvisible: Whether all child components are invisible by default (initial value is true). (boolean)
  • formData: Form data, taking the first record of the current active records. (Record<string, unknown>)
  • help: Help information, obtained from DSL. (string | undefined)
  • isDialog: Whether it is a dialog scenario (judged based on popupScene). (boolean)
  • isDrawer: Whether it is a drawer scenario (judged based on popupScene). (boolean)
  • parentCols: Parent number of columns. (number | undefined)
  • parentViewType: Parent view type. (ViewType | undefined)
  • popupScene: Popup layer scenario. (string | undefined)
  • viewType: Current view type, preferentially using view configuration, otherwise inheriting from the parent. (ViewType | undefined)

Methods:

executeExpression

  • Function Description: Executes an expression, supporting contexts such as form data and root data.
  • Type: <T>(expression: string, errorValue?: T) => T | string | undefined
  • Parameters:
    • expression: Expression string.
    • errorValue: Default value when the expression execution fails (optional).
  • Return Value: Expression result or default value.

executeLabelExpression

  • Function Description: Processes label expressions, automatically identifying expression strings or keywords.
  • Type: (label: string) => string | undefined
  • Parameters:
    • label: Label content.
  • Return Value: Processed label string or undefined.

invisibleProcess

  • Function Description: Processes the invisible property, supporting expression calculation.
  • Type: (invisible: boolean | string) => boolean | undefined
  • Parameters:
    • invisible: Invisible property value (boolean or string).
  • Return Value: Processed boolean value or undefined.

5、BaseActionWidget

Inheritance: BaseRuntimePropertiesWidget

Properties:

  • action: Current runtime action, cannot be undefined; otherwise, an error is thrown. (Action)
  • isAsync: Whether it is an asynchronous action (fixed to return true). (boolean)
  • isDialog: Whether it is a dialog scenario (judged based on popupScene). (boolean)
  • isDrawer: Whether it is a drawer scenario (judged based on popupScene). (boolean)
  • isInnerPopup: Whether it is an internal popup layer scenario (judged based on popupScene). (boolean)
  • parentViewMode: Parent view mode. (ViewMode | undefined)
  • popupScene: Popup layer scenario. (PopupScene | string | undefined)
  • refreshCallChaining: Chaining call object during refresh. (CallChaining<boolean> | undefined)
  • submitCallChaining: Chaining call object during submission. (CallChaining<SubmitValue> | undefined)
  • submitType: Submission type. (SubmitType | undefined)
  • relationUpdateType: Relation update type. (RelationUpdateType | undefined)
  • runtimeAction: Internally maintained runtime action instance. (Action | undefined)
  • viewMode: Current view mode (provided to下级, defaulting to inheriting from the parent). (ViewMode | undefined)
  • viewType: Current view type. (ViewType | undefined)
  • validatorCallChaining: Chaining call object during validation. (CallChaining<boolean> | undefined)
  • $matched: Route matching information (obtained when the component is mounted). (Matched | undefined)
  • $router: Route instance (obtained when the component is mounted). (Router | undefined)

Methods:

load

  • Function Description: Executes an asynchronous operation and manages the loading state; if it is an asynchronous action, calls the parent class load; otherwise, executes the function directly.
  • Type: <R>(fn: (...args) => R, ...args) => Promise<R>
  • Parameters:
    • fn: Function to execute.
    • args: Function parameters.
  • Return Value: Function execution result.

6、BaseFieldWidget

Inheritance: BaseFormItemWidget

Properties:

  • computeTrigger: Compute trigger mode. (ComputeTrigger[])
  • field: Runtime field. (Field)
  • label: Field label. (string | undefined)
  • readonly: Whether it is read-only. (boolean)
  • required: Whether it is required. (boolean)

Methods:

blur

  • Function Description: Triggers the field blur event and notifies related lifecycles.
  • Type: () => void

change

  • Function Description: Updates the field value and notifies the field change lifecycle.
  • Type: (val: Value | null | undefined) => void
  • Parameters:
    • val: New field value. (Value | null | undefined)

executeCompute

  • Function Description: Executes compute logic (currently a placeholder, complete logic not implemented).
  • Type: (trigger: ComputeTrigger) => void
  • Parameters:
    • trigger: Compute trigger type. (ComputeTrigger)

executeValidator

  • Function Description: Executes validation logic and notifies validation-related lifecycles.
  • Type: () => Promise<ValidatorInfo>
  • Return Value: Validation result information.

focus

  • Function Description: Triggers the field focus event and notifies related lifecycles.
  • Type: () => void

on

  • Function Description: Listens to field events, supporting single or multiple event listening.
  • Type: (event: FieldEventName | { [key in FieldEventName]?: HandlerEvent }, handler?: HandlerEvent) => void
  • Parameters:
    • event: Event name or event object. (FieldEventName | { [key in FieldEventName]?: HandlerEvent })
    • handler: Event handler (optional). (HandlerEvent)

submit

  • Function Description: Submits the field value and returns the submission result.
  • Type: (submitValue: SubmitValue) => ReturnPromise<Record<string, unknown> | SubmitRelationValue | undefined>
  • Parameters:
    • submitValue: Submitted value. (SubmitValue)
  • Return Value: Submission result.

validator

  • Function Description: Executes specific validation logic and returns the validation result.
  • Type: () => Promise<ValidatorInfo>
  • Return Value: Validation result information.

validatorSpecific

  • Function Description: Executes specific validation logic and returns the validation result.
  • Type: (needCheckedValue: any) => Promise<ValidatorInfo>
  • Parameters:
    • needCheckedValue: Value to be validated. (any)
  • Return Value: Promise of validation result information.

7、EditorFieldWidget

No content.

8、BaseRouterWidget

No content.

（Ⅲ）Metadata Components

1、MetadataViewWidget

Inheritance: DslDefinitionWidget

Properties:

  • inline: Whether it is an inline component. (boolean)
  • isVirtual: Whether it is a virtual component (controls slot behavior). (boolean)
  • modelModel: Model name (obtained from the runtime context). (string | undefined)
  • modelName: Model display name (obtained from the runtime context). (string | undefined)
  • moduleModule: Module name (obtained from the runtime context). (string | undefined)
  • moduleName: Module display name (obtained from the runtime context). (string | undefined)
  • runtimeContext: Runtime context instance. (RuntimeContext | undefined)
  • viewDsl: View DSL definition (obtained from the runtime context). (DslDefinition | undefined)
  • viewLayout: View layout DSL definition (obtained from the runtime context). (DslDefinition | undefined)
  • viewTemplate: View template DSL definition (obtained from the runtime context). (DslDefinition | undefined)
  • viewType: View type (obtained from the runtime context). (ViewType | undefined)
  • viewAction: View action instance (injected during initialization). (RuntimeViewAction | undefined)

Methods:

createWidget

  • Function Description: Creates a child component, automatically injecting the metadata handle and root handle (for non-automatic components).
  • Type: <TProps extends WidgetProps, T extends Widget<TProps>>(constructor: WidgetConstructor<TProps, T>, slotName?: string, initConfig?: T['config'], specifiedIndex?: number, resolveNewCode?: boolean) => T
  • Parameters:
    • constructor: Component constructor.
    • slotName: Slot name (optional).
    • initConfig: Initialization configuration (optional).
    • specifiedIndex: Specified index (optional).
    • resolveNewCode: Whether to resolve new code (optional).

initContext

  • Function Description: Initializes the component with a specified runtime context.
  • Type: (runtimeContext: RuntimeContext) => RuntimeContext
  • Parameters:
    • runtimeContext: Runtime context instance.
  • Return Value: Initialized runtime context.

initContextByViewAction

  • Function Description: Creates and initializes a runtime context through a view action.
  • Type: (viewAction?: RuntimeViewAction) => RuntimeContext
  • Parameters:
    • viewAction: View action instance (optional, defaults to using the current instance's viewAction).
  • Return Value: Runtime context instance.
  • Exception: Throws an error if the view action or runtime context is invalid.

initContextByView

  • Function Description: Creates and initializes a runtime context through a view.
  • Type: (view: RuntimeView) => void
  • Parameters:
    • view: View instance.
  • Return Value: Runtime context instance.
  • Exception: Throws an error if the view is invalid.

initContextByViewForField

  • Function Description: Creates and initializes a runtime context through a view and field (for subviews).
  • Type: (view: RuntimeView, field: RuntimeModelField) => void
  • Parameters:
    • view: View instance.
    • field: Model field instance.
  • Return Value: Runtime context instance.
  • Exception: Throws an error if the view or field is invalid.

2、DefaultMetadataMainViewWidget

Inheritance: MetadataViewWidget

Properties:

  • currentRuntimeViewAction: Current runtime view action instance. (RuntimeViewAction | undefined)
  • loading: Global loading state indicator. (boolean)
  • mainViewLoading: Main view loading state (provided to下级 components). (boolean)
  • maskTemplate: Mask template DSL definition. (DslDefinition | undefined)
  • multiTabsContainerWidget: Multi-tab container component instance. (MultiTabsContainerWidget | undefined)
  • multiTabsTeleportWidget: Multi-tab Teleport component instance. (TeleportWidget | undefined)
  • pairwiseRoutePage: Comparison of page parameters before and after route changes. ({ oldPage: ViewActionQueryParameter | undefined; newPage: ViewActionQueryParameter | undefined })
  • reloadMainViewCallChaining: Main view reload chaining call object (provided to下级). (CallChaining<void>)
  • reloadMaskCallChaining: Mask reload chaining call object (provided to下级). (CallChaining<void>)
  • translateToolBox: Internationalization toolbar virtual node. (VNode | undefined)

Methods:

createMultiTabsContainerWidget

  • Function Description: Creates a multi-tab container and Teleport component.
  • Type: () => void

fetchRuntimeViewAction

  • Function Description: Obtains the runtime view action (supports permission validation).
  • Type: (model: string, action: string | undefined, path?: string) => Promise<RuntimeViewAction>
  • Parameters:
    • model: Model name.
    • action: Action name.
    • path: Route path (optional).
  • Return Value: Promise of the runtime view action instance.

initRuntimeContext

  • Function Description: Initializes the runtime context (determines if it is initialization or refresh).
  • Type: (viewAction: RuntimeViewAction) => { isInit: boolean; isRefresh: boolean }
  • Parameters:
    • viewAction: View action instance.
  • Return Value: Initialization status object.

reloadPage

  • Function Description: Reloads the page (handles route changes, internationalization, permissions, etc.).
  • Type: (oldPage?: ViewActionQueryParameter, newPage: ViewActionQueryParameter) => Promise<void>
  • Parameters:
    • oldPage: Old page parameters (optional).
    • newPage: New page parameters.

renderMask

  • Function Description: Renders the mask template and triggers chaining calls.
  • Type: (viewAction: RuntimeViewAction, oldPage?: ViewActionQueryParameter, newPage: ViewActionQueryParameter) => Promise<void>
  • Parameters:
    • viewAction: View action instance.
    • oldPage: Old page parameters (optional).
    • newPage: New page parameters.

renderMainView

  • Function Description: Renders the main view and triggers chaining calls.
  • Type: (oldPage?: ViewActionQueryParameter, newPage: ViewActionQueryParameter) => Promise<void>
  • Parameters:
    • oldPage: Old page parameters (optional).
    • newPage: New page parameters.

watchRoute

  • Function Description: Listens to route changes and triggers the page reload process.
  • Type: () => void

3、DefaultMainViewWidget

Inheritance: MetadataViewWidget

Properties:

  • loading: Main view loading state. (boolean | undefined)
  • multiTabsContainerWidget: Multi-tab container component instance. (MultiTabsContainerWidget | undefined)
  • multiTabsTeleportWidget: Multi-tab Teleport component instance. (TeleportWidget | undefined)
  • reloadMainViewCallChaining: Main view reload chaining call object. (CallChaining | undefined)
  • teleportTarget: Teleport target element selector. (string | undefined)

Methods:

dispose

  • Function Description: Destroys the component.
  • Type: () => void

getMultiTabsTeleportWidget

  • Function Description: Obtains the multi-tab Teleport component and sets the rendering target.
  • Type: () => TeleportWidget | undefined

getUrlParameters

  • Function Description: Obtains URL query parameters (overrides the parent class method).
  • Type: () => UrlQueryParameters
  • Return Value: URL parameter object (obtained from route matching parameters).

reloadRuntimeContext

  • Function Description: Reloads the runtime context based on the handle.
  • Type: (handle: string) => void
  • Parameters:
    • handle: Component handle.

4、MultiTabsContainerWidget

Inheritance: DslDefinitionWidget

Properties:

  • disabledCache: Whether to disable caching. (boolean)
  • isEnabledHomepage: Whether to enable the application homepage tab (module homepage takes precedence). (boolean)
  • isEnabledModuleHomepage: Whether to enable the module homepage tab. (boolean)
  • loading: Loading state indicator. (boolean)
  • maxCacheCount: Maximum number of cached tabs, preferentially using component configuration, otherwise taking the global value. (number)
  • maxCount: Maximum number of tabs, preferentially using component configuration, otherwise taking the global value. (number | undefined)
  • menuNodes: Menu tree node list. (TreeNode<RuntimeMenu>[])
  • module: Current module information. (IModule | undefined)
  • multiTabConfig: Multi-tab configuration (obtained from the system main configuration and dynamically updated). (SystemStyleMultiTabConfig | undefined)
  • reloadMainViewCallChaining: Main view reload chaining call object. (CallChaining | undefined)
  • tabs: Tab list. (MultiTabItem[])

Methods:

appendEnterTab

  • Function Description: Appends an entry tab to the list.
  • Type: (enterTab: MultiTabItem, parameter?: ViewActionQueryParameter) => void
  • Parameters:
    • enterTab: Tab item to add.
    • parameter: URL parameters (optional).

createTabContainerWidget

  • Function Description: Creates a tab container component.
  • Type: (instanceOrKey: string | MultiTabInstance, runtimeContext: RuntimeContext) => MultiTabContainerWidget
  • Parameters:
    • instanceOrKey: Instance or instance key.
    • runtimeContext: Runtime context.
  • Return Value: Tab container component instance.

executeMaxCacheCount

  • Function Description: Executes the maximum cache count restriction logic.
  • Type: (maxCacheCount: number) => void
  • Parameters:
    • maxCacheCount: Maximum number of caches.

executeMaxCount

  • Function Description: Executes the maximum tab count restriction logic.
  • Type: (maxCount: number) => void
  • Parameters:
    • maxCount: Maximum number of tabs.

findEnterTab

  • Function Description: Finds the tab for a specified action.
  • Type: (action: RuntimeViewAction, parameter?: ViewActionQueryParameter) => MultiTabItem | undefined
  • Parameters:
    • action: View action.
    • parameter: URL parameters (optional).
  • Return Value: Matched tab item or undefined.

fetchMenuNodes

  • Function Description: Obtains module menu tree nodes.
  • Type: (moduleName: string) => Promise<TreeNode<RuntimeMenu>[]>
  • Parameters:
    • moduleName: Module name.
  • Return Value: Menu tree node list.

generatorTabItem

  • Function Description: Generates a tab item.
  • Type: (type: MultiTabType, action: RuntimeViewAction, parameters?: ViewActionQueryParameter) => MultiTabItem
  • Parameters:
    • type: Tab type.
    • action: View action.
    • parameters: URL parameters (optional).
  • Return Value: Tab item.

getMultiTabType

  • Function Description: Obtains the tab type (homepage/module homepage/normal).
  • Type: (moduleModule: string, model: string, name: string) => Promise<MultiTabType>
  • Parameters:
    • moduleModule: Module name.
    • model: Model name.
    • name: Action name.
  • Return Value: Tab type.

initHomepageTab

  • Function Description: Initializes the homepage tab.
  • Type: (module?: string) => Promise<MultiTabItem>
  • Parameters:
    • module: Module name (optional, defaults to the application homepage).
  • Return Value: Homepage tab item.

initMultiTabs

  • Function Description: Initializes multi-tabs (handles homepage logic).
  • Type: () => Promise<void>

isEnabled

  • Function Description: Determines if the multi-tab function is enabled (supports module-level filtering).
  • Type: (module?: string) => boolean
  • Parameters:
    • module: Module name (optional, for module-level filtering).
  • Return Value: Whether multi-tabs are enabled.

joinActiveTab

  • Function Description: Joins the current active tab and updates the parameters.
  • Type: (viewAction: RuntimeViewAction, currentPage: ViewActionQueryParameter) => { tabItem: MultiTabItem; isUsingCache: boolean }
  • Parameters:
    • viewAction: View action.
    • currentPage: Current URL parameters.
  • Return Value: Active tab item and whether to use cache flag.

onModuleChange

  • Function Description: Callback when the module changes (resets the multi-tab state).
  • Type: (moduleName: string) => Promise<void>
  • Parameters:
    • moduleName: New module name.

refreshRuntimeContext

  • Function Description: Refreshes the runtime context and updates the tabs.
  • Type: (handle: string, currentPage: ViewActionQueryParameter, menuUrlParameters?: MenuUrlParameters) => void
  • Parameters:
    • handle: Component handle.
    • currentPage: Current URL parameters.
    • menuUrlParameters: Menu parameters (optional).

setActiveTabItem

  • Function Description: Sets the active tab component.
  • Type: (tab: MultiTabItem) => void
  • Parameters:
    • tab: Tab item.

setLoading

  • Function Description: Sets the loading state.
  • Type: (loading: boolean) => void
  • Parameters:
    • loading: Loading state value.

getSortedTabs

  • Function Description: Obtains the list of normal tabs sorted by creation time.
  • Type: () => MultiTabItem[]
  • Return Value: Sorted tab array.

5、MultiTabContainerWidget

Inheritance: MetadataViewWidget

Properties:

  • instance: Multi-tab instance, including tab state, stack information, etc. (MultiTabInstance)

Methods:

onRefresh

  • Function Description: Refreshes the tab runtime context.
  • Type: (handle?: string) => void
  • Parameters:
    • handle: Runtime context handle (optional, defaults to using the current component handle).
默认页脚
Copyright © 2025 Mr.Hope
