Metadata Service
在 Oinone Kunlun 中,元数据是系统运行最重要的一部分。在 “精通前端框架 - 前端框架概览” 中,我们已经对元数据概念有了初步的认识,在这一章节,我们将从前端框架的角度来进一步了解元数据在 Oinone 中的具体呈现。

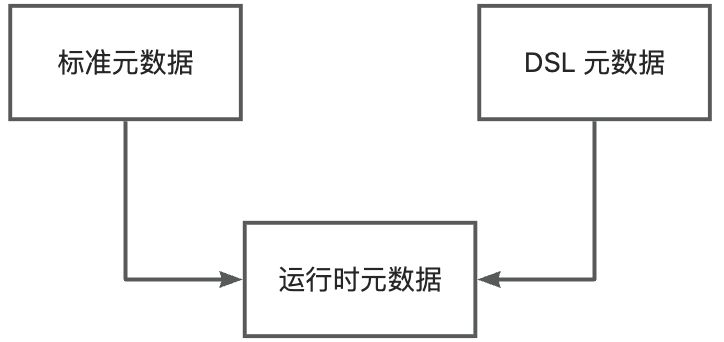

一、元数据图示
在 Oinone Kunlun 中,元数据分为三类:
- 标准元数据:与后端模型一一对应。
- DSL 元数据:通过
viewAction#load
接口获取的 DSL 元数据。 - 运行时元数据:通过标准元数据或 DSL 元数据转换后的统一元数据类型。

提示:
在业务系统中,我们对元数据的获取和操作都应该围绕着 运行时元数据
展开,这样任何来源的元数据都可以通过一套逻辑完成。

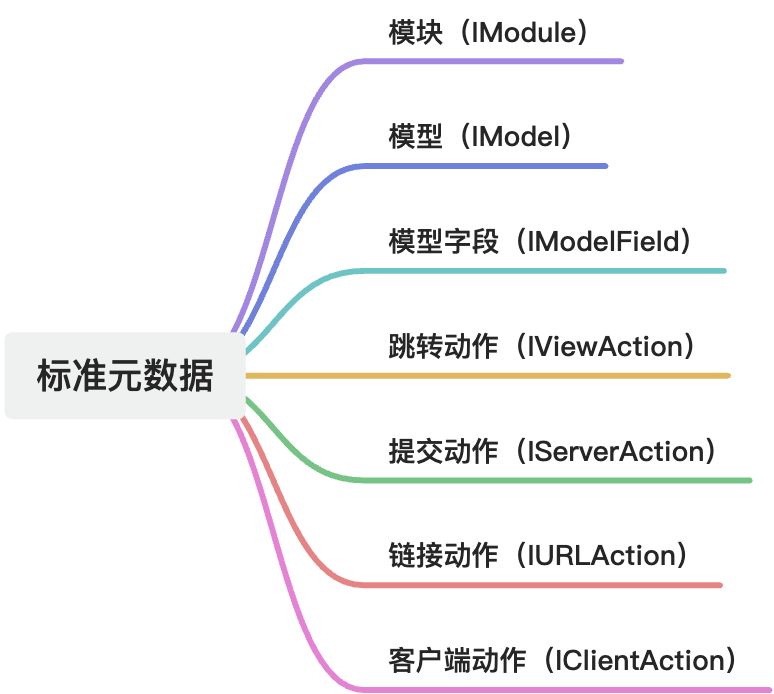

1、标准元数据图谱

2、运行时元数据图谱

二、如何获取运行时元数据
(一)使用 RuntimeContext 获取元数据
在具有 RuntimeContext
的组件中,我们可以根据页面结构使用 rootRuntimeContext
或 metadataRuntimeContext
获取对应模型的运行时元数据。
(二)使用 ModelCache 获取模型元数据
// 获取国家分组模型元数据
const model = await ModelCache.get('resource.ResourceCountryGroup');
三、Reference List
(一)标准元数据
1、模块(IModule)
属性:
- id:模块的唯一标识符。(
string
) - name:模块的 API 名称。(
string
) - module:模块的技术名称。(
string
) - displayName:模块的显示名称,用于 UI 展示。(
string
) - logo:模块的图标 URL。(
string
) - homePage:模块的主页视图配置。(
IViewAction
) - allMenus:模块的所有菜单配置。(
IMenu[]
) - priority:模块的显示优先级。(
number
) - application:标识是否为独立应用。(
boolean
) - like:标识是否为用户收藏。(
boolean
) - urlHomePage:模块的 URL 主页配置。(
IURLAction
)
2、模型(IModel)
属性:
- id:模型的唯一标识符。(
string
) - pk:主键字段列表。(
string[]
) - model:模型的技术名称。(
string
) - name:模型的内部名称。(
string
) - type:模型的类型。(
ModelType
) - module:所属模块的标识符。(
string
) - moduleName:所属模块的名称。(
string
) - modelFields:模型字段定义列表。(
IModelField[]
) - displayName:模型的显示名称。(
string
) - labelFields:用于显示标签的字段列表。(
string[]
) - label:模型的标签表达式。(
string
) - progressField:进度字段名称。(
string
) - masterFieldStr:主字段字符串。(
string
) - progressFieldStr:进度字段字符串。(
string
) - viewActionList:视图动作列表。(
IViewAction[]
) - serverActionList:服务器动作列表。(
IServerAction[]
) - urlActionList:URL 动作列表。(
IURLAction[]
) - clientActionList:客户端动作列表。(
IClientAction[]
) - functions:模型函数列表。(
IModelFunc[]
) - modelActions:模型动作集合。(
(IClientAction | IURLAction | IServerAction | IViewAction)[]
) - viewList:视图定义列表。(
IView[]
) - uniqueList:唯一约束定义列表。(
{ fieldList: IModelField[]; fields: string }[]
) - uniques:唯一约束字段列表。(
string[]
) - indexes:索引字段列表。(
string[]
) - indexList:索引定义列表。(
{ fieldList: IModelField[]; fields: string[] }[]
) - ordering:排序规则。(
string
) - attributes:模型属性配置。(
object
)- requiredCondition:必填条件表达式。(
string
) - invisibleCondition:不可见条件表达式。(
string
) - readonlyCondition:只读条件表达式。(
string
) - layoutGrid:布局网格大小。(
number
) - layoutGroup:布局分组名称。(
string
)
- requiredCondition:必填条件表达式。(
3、模型字段(IModelField)
属性:
- id:字段的唯一标识符。(
string
) - data:兼容 v3 新版字段的数据标识。(
string
) - name:字段 API 名称。(
string
) - limit:关联关系数量限制,针对 xxx2many 字段的可选数量约束。(
number
) - load:数据加载函数。(
string
) - ttype:模型字段类型枚举。(
ModelFieldType
) - model:关联模型的名称。(
string
) - displayName:字段的显示名称。(
string
) - max:数值字段的最大值限制。(
string
) - min:数值字段的最小值限制。(
string
) - sys:标识是否为系统字段。(
boolean
) - systemSource:系统来源枚举。(
SystemSource
) - size:数值字段的长度。(
number
) - decimal:数值字段的精度。(
number
) - options:枚举类型的选项列表。(
IModelFieldOption[]
) - index:标识是否为索引字段。(
boolean
) - unique:标识是否为唯一索引字段。(
boolean
) - translate:标识是否需要翻译。(
boolean
) - label:字段的临时标签。(
string
) - references:关联的对方模型(原 relation)。(
string
) - through:m2m 关联关系的中间模型。(
string
) - relationFields:自身模型的关联字段。(
string[]
) - referenceFields:关联模型的关联字段。(
string[]
) - throughRelationFields:中间模型里当前模型的关联字段。(
string[]
) - throughReferenceFields:中间模型里关联模型的关联字段。(
string[]
) - invisible:默认可见性(布尔值或表达式)。(
boolean | string
) - priority:字段排序优先级。(
BIGINT
) - compute:计算表达式。(
string
) - relatedTtype:关联字段的类型。(
ModelFieldType
) - widget:字段使用的组件类型。(
string
) - field:字段关联的属性名。(
string
) - sortable:是否可排序(XML 配置字段,非后端模型字段)。(
boolean
) - hint:字段提示信息(XML 配置字段,非后端模型字段)。(
string
) - patternType:正则校验类型(XML 配置字段,非后端模型字段)。(
string
) - pattern:正则校验表达式。(
string
) - validation:表达式校验规则。(
string
) - tips:校验失败的提示消息。(
string
) - independentlyEditable:是否开启行内编辑。(
boolean
) - related:关联字段列表。(
string[]
) - store:是否需要存储字段值。(
boolean
) - relationStore:关联关系是否存储。(
boolean
) - storeSerialize:存储序列化函数类型(NON/JSON/COMMA/DOT)。(
ModelFieldSerializeType
) - domain:字段值域范围。(
string
) - isUnique:是否全局唯一(默认 false)。(
boolean
) - required:是否必填(默认 false,支持表达式)。(
boolean | string
) - requiredTips:必填校验的提示文案。(
string
) - domainSize:后端备选项分页数量。(
string
) - readonly:是否只读(新增可编辑,修改不可编辑,默认 false)。(
boolean
) - multi:字段返回值是否为数组。(
boolean
) - format:字段格式规则。(
string
) - defaultValue:字段默认值。(
string
) - attributes:字段属性配置。(
object
)- requiredCondition:必填条件表达式。(
string
) - invisibleCondition:不可见条件表达式。(
string
) - readonlyCondition:只读条件表达式。(
string
) - layoutGrid:布局网格大小。(
number
) - layoutGroup:布局分组名称。(
string
) - layoutTab:布局标签页。(
string
) - layoutTabs:布局标签页列表。(
string
)
- requiredCondition:必填条件表达式。(
- modelFields:嵌套的子字段列表(避免与服务端 children 字段冲突)。(
IModelField[]
)
4、IBaseAbstractAction
属性:
- title:动作标题。(
string
) - displayName:动作显示名称。(
string
) - label:动作标签。(
string
) - model:关联模型名称。(
string
) - rule:过滤规则(已废弃)。(
string
) - invisible:按钮显隐规则。(
string
)
5、IBaseAction
属性:
- id:动作唯一标识。(
string
) - name:动作名称。(
string
) - model:关联模型名称。(
string
) - modelDefinition:模型定义对象。(
IModel
) - bindingType:动作绑定的视图类型列表。(
string[]
) - bindingViewName:动作仅显示的指定视图名称。(
string
) - actionType:动作类型枚举。(
ActionType
) - contextType:动作上下文类型枚举。(
ActionContextType
) - usageDesc:动作使用说明。(
string
) - groups:动作所属群组。(
any[]
) - builtIn:是否为内置动作。(
boolean
) - skipCheck:是否跳过动作策略筛选(临时解决方案)。(
boolean
) - config:动作配置参数。(
Record<string, unknown>
) - confirm:确认提示信息。(
string
) - priority:动作优先级。(
number
) - sessionPath:会话路径。(
string
)
6、跳转动作(IViewAction)
继承:IBaseAction
属性:
- actionType:固定为视图动作类型。(
ActionType.View
) - target:目标窗口类型。(
ViewActionTarget
) - resModel:目标模型名称。(
string
) - resModelDefinition:目标模型定义对象。(
IModel
) - resViewName:目标视图名称。(
string
) - bindingViewName:绑定的 XML 视图名称。(
string
) - queryType:查询类型。(
QueryType
) - apiProtocol:API 协议类型。(
ApiProtocol
) - viewMode:可切换的视图类型列表(逗号分隔)。(
string
) - viewType:默认打开的视图类型。(
ViewType
) - dataType:视图数据分类。(
DataType
) - domain:列表视图附带的查询条件(用户可见)。(
string
) - filter:列表视图附带的查询条件(用户不可见)。(
string
) - load:数据加载方式。(
string
) - loadFunction:数据加载函数。(
IModelFunc
) - context:上下文变量。(
Record<string, unknown>
) - moduleName:模块短标识(前端用)。(
string
) - page:视图动作页面配置。(
ViewActionPage
) - resView:目标视图对象。(
IView
) - module:模块标识。(
string
) - resModule:目标模块标识。(
string
) - resModuleName:目标模块名称。(
string
) - resModuleDefinition:目标模块定义对象。(
IModule
) - moduleDefinition:模块定义对象。(
IModule
) - maskDefinition:遮罩层定义。(
{ name: string; template: string; }
) - theme:主题样式。(
string
)
7、分享跳转动作(ISharedViewAction)
继承:IViewAction
属性:
- sharedCode:共享码。(
string
) - authorizationCode:授权码。(
string
) - sharedParameters:共享参数。(
string
) - browserTitle:浏览器标题。(
string
) - language:语言。(
string
) - languageIsoCode:语言 ISO 代码。(
string
)
8、提交动作(IServerAction)
继承:IBaseAction
属性:
- actionType:固定为提交动作类型。(
ActionType.Server
) - functionDefinition:模型函数定义对象。(
IModelFunc
) - function:模型函数对象。(
IModelFunc
) - module:模块标识。(
string
)
9、链接动作(IURLAction)
继承:IBaseAction
属性:
- url:目标 URL 地址。(
string
) - compute:URL 计算表达式。(
string
) - target:目标窗口类型。(
ViewActionTarget
) - confirm:确认提示信息。(
string
) - module:模块标识。(
string
) - context:上下文变量。(
Record<string, unknown>
)
10、客户端动作(IClientAction)
继承:IBaseAbstractAction
属性:
- actionType:固定为客户端动作类型。(
ActionType.Client
) - name:客户端动作名称或自定义字符串。(
ClientActionName | string
) - bindingType:动作绑定的视图类型列表。(
string[]
) - id:动作唯一标识(可选)。(
string
) - contextType:动作上下文类型枚举。(
ActionContextType
) - confirm:确认提示信息。(
string
) - priority:动作优先级。(
number
) - tag:动作标签。(
string
) - fun:客户端函数名称。(
string
)
(二)运行时元数据
1、模块(RuntimeModule)
属性:
- module:模块编码,用于唯一标识模块。(
string
) - name:模块名称,通常是程序内部使用的标识。(
string
) - displayName:模块显示名称,用于界面展示。(
string
)
2、模型(RuntimeModel)
属性:
- id:模型 id。(
string
) - model:模型编码。(
string
) - name:技术名称。(
string
) - modelFields:模型字段。(
RuntimeModelField[]
) - modelActions:模型动作。(
RuntimeAction[]
) - type:模型类型。(
ModelType
) - module:模块编码。(
string
) - moduleName:模块名称。(
string
) - moduleDefinition:模块定义。(
RuntimeModule
) - pks:主键。(
string[]
) - uniques:唯一键。(
string[][]
) - indexes:索引。(
string[][]
) - sorting:排序。(
string
) - label:显示标题。(
string
) - labelFields:标题字段。(
string[]
)
3、BaseRuntimeModelMetadata
描述:运行时模型元数据抽象定义。
属性:
- id:元数据 id。(
string
) - model:模型编码。(
string
) - modelName:模型名称。(
string
) - modelDefinition:模型定义。(
RuntimeModel
) - __index:元数据索引,与 dsl 中的__metadata_index 匹配。(
number
)
4、母版(RuntimeMaskDefinition)
属性:
- name:母版名称。(
string
) - template:母版模板。(
string
)
5、布局(RuntimeLayoutDefinition)
属性:
- name:布局名称。(
string
) - template:布局模板。(
string
)
6、视图(RuntimeView)
继承:BaseRuntimeModelMetadata
属性:
- name:视图名称。(
string
) - title:视图标题。(
string
) - type:视图类型。(
ViewType
) - module:视图模块编码。(
string
) - moduleName:视图模块名称。(
string
) - layoutName:布局名称。(
string
) - layout:布局 dsl。(
string | DslDefinition
) - dsl:模板 dsl。(
string | DslDefinition
) - template:最终执行 dsl。(
string | DslDefinition
) - filter:不可视过滤条件。(
string
) - domain:可视过滤条件。(
string
) - initialValue:视图初始值。(
Record<string, unknown>[]
) - context:上下文。(
Record<string, unknown>
) - extension:扩展属性。(
Record<string, unknown>
)
7、模型字段(RuntimeModelField)
继承:BaseRuntimeModelMetadata
属性:
- template:原始 dsl。(
FieldDslDefinition
) - data:属性名称。(
string
) - name:API 名称。(
string
) - ttype:字段业务类型。(
ModelFieldType
) - multi:是否多值。(
boolean
) - defaultValue:默认值。(
unknown
) - store:是否存储。(
boolean
) - sortable:是否排序。(
boolean
) - storeSerialize:存储序列化方式。(
ModelFieldSerializeType
) - displayName:字段显示名称。(
string
) - label:字段页面显示名称(优先于 displayName)。(
string
) - required:必填规则。(
boolean | string
) - readonly:只读规则。(
boolean | string
) - invisible:隐藏规则。(
boolean | string
) - disabled:禁用规则。(
boolean | string
) - compute:计算表达式。(
string
) - submitType:提交类型。(
SubmitType
) - isVirtual:是否为虚拟字段。(
boolean
) - translate:是否需要翻译。(
boolean
)
8、文本字段(RuntimeStringField)
继承:RuntimeModelField
属性:
- size:大小。(
string | number
) - limit:限制。(
string | number
) - max:最大值。(
string | number
) - min:最小值。(
string | number
)
9、数字字段(RuntimeNumberField)
继承:RuntimeModelField
属性:
- size:大小。(
string | number
) - decimal:小数位数。(
string | number
) - max:最大值。(
string | number
) - min:最小值。(
string | number
) - limit:限制数量。(
string | number
)
10、布尔字段(RuntimeBooleanField)
继承:RuntimeModelField
属性:
- options:选项。(
[RuntimeEnumerationOption, RuntimeEnumerationOption]
)
11、枚举字段(RuntimeEnumerationField)
继承:RuntimeModelField
属性:
- options:选项列表。(
RuntimeEnumerationOption[]
)
12、日期时间字段(RuntimeDateTimeField)
继承:RuntimeModelField
属性:
- format:日期时间格式化字符串。(
string
) - valueFormat:值的格式化字符串。(
string
) - dateFormat:日期部分的格式化字符串。(
string
) - timeFormat:时间部分的格式化字符串。(
string
)
13、日期字段(RuntimeDateField)
继承:RuntimeModelField
属性:
- format:格式化字符串。(
string
) - valueFormat:值的格式化字符串。(
string
) - dateFormat:日期部分的格式化字符串。(
string
)
14、时间字段(RuntimeTimeField)
继承:RuntimeModelField
属性:
- format:格式化字符串。(
string
) - valueFormat:值的格式化字符串。(
string
) - timeFormat:时间部分的格式化字符串。(
string
)
15、年份字段(RuntimeYearField)
继承:RuntimeModelField
属性:
- format:格式化字符串。(
string
) - valueFormat:值的格式化字符串。(
string
)
16、关系字段(RuntimeRelationField)
继承:RuntimeModelField
属性:
- relationStore:是否关系存储。(
boolean
) - references:关联模型编码。(
string
) - referencesModel:关联模型。(
RuntimeModel
) - relationFields:关系字段(在当前模型中的字段)。(
string[]
) - referenceFields:关联字段(在关联模型中的字段)。(
string[]
) - filter:不可视过滤条件。(
string
) - domain:可视过滤条件。(
string
) - relationUpdateType:关联关系更新类型。(
RelationUpdateType
) - submitCache:提交缓存。(
SubmitCacheManager
) - sortFields:排序字段。(
string[]
)
17、一对多关系字段(RuntimeO2MField)
继承:RuntimeRelationField
属性:
- limit:限制数量。(
number | string
)
18、多对一关系字段(RuntimeM2OField)
继承:RuntimeRelationField
属性:同 RuntimeRelationField
19、多对多关系字段(RuntimeM2MField)
继承:RuntimeRelationField
属性:
- through:多对多中间模型编码。(
string
) - throughRelationFields:多对多中间模型关系字段(与关系字段对应)。(
string[]
) - throughReferenceFields:多对多中间模型关联字段(与关联字段对应)。(
string[]
) - limit:限制数量。(
string | number
)
20、引用字段(RuntimeRelatedField)
继承:RuntimeModelField
属性:
- relatedTtype:引用业务类型。(
ModelFieldType
) - related:引用属性。(
string[]
)
21、搜索模型字段(RuntimeSearchField)
继承:RuntimeModelField
属性:
- operator:操作符。(
string
) - allowSearch:是否允许搜索。(
boolean
)
22、动作(RuntimeAction)
继承:BaseRuntimeModelMetadata
属性:
- template:原始 dsl。(
ActionDslDefinition
) - name:动作名称。(
string
) - widget:动作组件。(
string
) - actionType:动作类型。(
ActionType
) - contextType:动作上下文类型(用于控制数据提交方式)。(
ActionContextType
) - bindingType:绑定视图类型(表示该按钮仅在对应视图类型中显示)。(
ViewType[]
) - bindingViewName:绑定视图名称(表示该按钮仅在指定名称的视图中显示)。(
string
) - priority:优先级。(
number
) - invisible:隐藏规则。(
boolean | string
) - disabled:禁用规则。(
boolean | string
) - displayName:字段显示名称。(
string
) - label:动作页面显示名称(优先于 displayName)。(
string
) - mapping:数据映射。(
Record<string, unknown>
) - context:上下文。(
Record<string, unknown>
) - sessionPath:会话路径。(
string
)
23、跳转动作(RuntimeViewAction)
继承:RuntimeAction
属性:
- title:跳转动作标题。(
string
) - target:跳转类型。(
ViewActionTarget
) - filter:不可视过滤条件。(
string
) - domain:可视过滤条件。(
string
) - module:当前模块编码。(
string
) - moduleName:当前模块名称。(
string
) - moduleDefinition:当前模块定义。(
RuntimeModule
) - maskDefinition:母版定义。(
RuntimeMaskDefinition
) - viewLayout:当前视图布局定义。(
RuntimeLayoutDefinition
) - viewName:当前视图名称。(
string
) - viewType:当前视图类型。(
ViewType
) - viewMode:当前视图模式。(
ViewMode
) - resModel:目标模型编码。(
string
) - resModelName:目标模型名称。(
string
) - resModelDefinition:目标模型定义。(
RuntimeModel
) - resModule:目标模块编码。(
string
) - resModuleName:目标模块名称。(
string
) - resModuleDefinition:目标模块定义。(
RuntimeModule
) - resMaskDefinition:母版定义。(
RuntimeMaskDefinition
) - resViewLayout:目标视图布局定义。(
RuntimeLayoutDefinition
) - resViewName:目标视图名称。(
string
) - resViewType:目标视图类型。(
ViewType
) - resViewMode:目标视图模式。(
ViewMode
) - resView:目标视图定义。(
RuntimeView
) - theme:主题。(
string
) - load:加载函数名称。(
string
) - loadFunctionDefinition:加载函数定义。(
RuntimeFunctionDefinition
)
24、分享跳转动作(SharedRuntimeViewAction)
继承:RuntimeViewAction
属性:
- sharedCode:分享码。(
string
) - authorizationCode:授权码。(
string
) - sharedParameters:分享参数。(
Record<string, unknown>
) - browserTitle:浏览器标题。(
string
) - language:当前语言。(
string
) - languageIsoCode:当前语言 ISO 编码。(
string
)
25、提交动作(RuntimeServerAction)
继承:RuntimeAction
属性:
- fun:函数名称。(
string
) - functionDefinition:函数定义。(
RuntimeFunctionDefinition
)
26、链接动作(RuntimeUrlAction)
继承:RuntimeAction
属性:
- url:跳转 url。(
string
) - target:打开方式。(
ViewActionTarget
) - computeFunction:计算函数。(
RuntimeFunctionDefinition
) - compute:计算函数 Fun。(
string
)
27、客户端动作(RuntimeClientAction)
继承:RuntimeAction
属性:
- fun:客户端动作名。(
string
)
28、函数(RuntimeFunctionDefinition)
属性:
- type:函数类型。(
FunctionType[]
) - namespace:函数命名空间。(
string | FunctionSelfFlagType
) - fun:函数编码。(
string
) - name:API 名称。(
string
) - argumentList:参数列表。(
RuntimeFunctionArgument[]
) - returnType:返回类型。(
RuntimeFunctionReturnType
)
(三)枚举
1、模型类型(ModelType)
STORE
:存储型模型,数据会持久化存储。TRANSIENT
:临时型模型,数据不持久化。ABSTRACT
:抽象型模型,用于继承。PROXY
:代理型模型,用于远程数据访问。
2、字段业务类型(ModelFieldType)
STRING
:字符串类型。TEXT
:文本类型。HTML
:HTML 类型。PHONE
:电话类型。EMAIL
:邮箱类型。INTEGER
:整数类型。LONG
:长整型。FLOAT
:浮点数类型。MONEY
:货币类型。DATETIME
:日期时间类型。DATE
:日期类型。TIME
:时间类型。YEAR
:年份类型。BOOLEAN
:布尔类型。ENUM
:枚举类型。MAP
:映射类型。RELATED
:关联类型。O2O
:一对一关系。O2M
:一对多关系。M2O
:多对一关系。M2M
:多对多关系。OBJ
:对象类型。
3、数据来源(SystemSource)
SYSTEM
:内核系统生成。BASE
:系统原生字段。MANUAL
:手工新增字段。UI
:界面新增字段。RELATION
:关联关系生成字段。ABSTRACT_INHERITED
:抽象继承而来。TRANSIENT_INHERITED
:临时继承而来。EXTEND_INHERITED
:同表继承而来。MULTI_TABLE_INHERITED
:多表继承而来。PROXY_INHERITED
:代理继承而来。
(四)获取运行时元数据方法
1、ModuleCache
方法:
get
- 功能描述:获取指定模块名称的缓存,可选择是否强制获取(忽略缓存)。
- 类型:
(moduleName: string, force?: boolean) => Promise<IModule | undefined>
- 参数:
moduleName
:模块名称。force
:强制查询,默认值false
。
- 返回值:模块元数据。
2、ModelCache
方法:
get
- 功能描述:通过模型编码获取模型。
- 类型:
(model: string, force?: boolean) => Promise<RuntimeModel | undefined>
- 参数:
model
:模型编码。force
:强制查询,默认值false
。
- 返回值:模型元数据。
3、ViewActionCache
方法:
get
- 功能描述:通过模型编码和跳转动作名称获取视图动作。
- 类型:
(model: string, name: string, force?: boolean) => Promise<RuntimeViewAction | undefined>
- 参数:
model
:模型编码。name
:跳转动作名称。force
:强制查询,默认值false
。
- 返回值:跳转动作元数据。
getOrThrow
- 功能描述:通过模型编码和跳转动作名称获取跳转动作,若不存在则抛出异常。
- 类型:
(model: string, name: string, force?: boolean) => Promise<RuntimeViewAction | undefined>
- 参数:
model
:模型编码。name
:跳转动作名称。force
:强制查询,默认值false
。
- 返回值:跳转动作元数据。
getHomepage
- 功能描述:获取模块首页跳转动作。
- 类型:
(module?: string, force?: boolean) => Promise<RuntimeViewAction | undefined>
- 参数:
module
:模块编码,可选。force
:强制查询,默认值false
。
- 返回值:首页跳转动作。
getSharedAction
- 功能描述:通过分享码获取分享跳转动作。
- 类型:
(sharedCode: string, force?: boolean) => Promise<RuntimeViewAction | undefined>
- 参数:
sharedCode
:分享码。force
:强制查询,默认值false
。
- 返回值:分享跳转动作。
set
- 功能描述:设置跳转动作。
- 类型:
(action: RuntimeViewAction) => Promise<void>
- 参数:
action
:跳转动作。
4、ServerActionCache
方法:
get
- 功能描述:通过模型编码和名称获取提交动作。
- 类型:
(model: string, name: string, force?: boolean) => Promise<RuntimeServerAction | undefined>
- 参数:
model
:模型编码。name
:名称。force
:强制查询,默认值false
。
- 返回值:提交动作元数据。
5、UrlActionCache
get
- 功能描述:通过模型编码和名称获取链接动作。
- 类型:
(model: string, name: string, force?: boolean) => Promise<RuntimeUrlAction | undefined>
- 参数:
model
:模型编码。name
:名称。force
:强制查询,默认值false
。
- 返回值:链接动作元数据。
6、FunctionCache
get
- 功能描述:通过函数技术名称获取函数。
- 类型:
(namespace: string, fun: string) => Promise<RuntimeFunctionDefinition | undefined>
- 参数:
namespace
:命名空间。fun
:技术名称。
- 返回值:函数元数据。
getByName
- 功能描述:通过函数名称获取函数(此方式不安全,请尽可能使用
FunctionCache.get
方式)。 - 类型:
(namespace: string, name: string) => Promise<RuntimeFunctionDefinition | undefined>
- 参数:
namespace
:命名空间。name
:名称。
- 返回值:函数元数据。
