When the Oinone framework source code has not been modified, you can switch from the Community Edition to the Enterprise Edition.

Tip

For information related to accounts, License permissions, etc., please contact Oinone staff.

I. Preparation

• Back up your Community Edition application database (this step is optional)
• Enterprise Edition Maven repository and account
• Container image repository and account
• Enterprise Edition license certificate

II. Install Enterprise Edition

Refer to:

• Quick Experience: Installation via docker-full Method
• Installation via docker-mini Method

III. Dependencies for Business Application Upgrade

(I) Add Business Application Dependency Management (Main POM)

<properties>
    <!-- Version can be updated according to the Oinone Release Announcement (https://doc.oinone.top/category/version) -->
    <!-- The version number must be consistent with the deployed Enterprise Edition version. For any questions, please contact Shushi Oinone staff -->
    <oinone-bom.version>6.2.10</oinone-bom.version>
</properties>

<dependencyManagement>
    <!-- Other dependency management -->
    <!-- ... -->

    <!-- Add oinone bom -->
    <dependency>
        <groupId>pro.shushi</groupId>
        <artifactId>oinone-bom</artifactId>
        <version>${oinone-bom.version}</version>
        <type>pom</type>
        <scope>import</scope>
    </dependency>
</dependencyManagement>

(II) Upgrade Dependencies of the Business Application (POM of the Boot Project)

1. Basic packages that need to be imported for the Enterprise Edition

<!-- Common Package - Enterprise Edition -->
<dependency>
  <groupId>pro.shushi.pamirs.core</groupId>
  <artifactId>pamirs-core-common-ee</artifactId>
</dependency>

<!-- Application Center - Enterprise Edition -->
<dependency>
  <groupId>pro.shushi.pamirs.core</groupId>
  <artifactId>pamirs-apps-ee</artifactId>
</dependency>

<!-- Authentication - Enterprise Edition -->
<dependency>
  <groupId>pro.shushi.pamirs.core</groupId>
  <artifactId>pamirs-auth3-ee-core</artifactId>
</dependency>
<dependency>
  <groupId>pro.shushi.pamirs.core</groupId>
  <artifactId>pamirs-auth3-ee-view</artifactId>
</dependency>
<dependency>
  <groupId>pro.shushi.pamirs.core</groupId>
  <artifactId>pamirs-auth3-ee-rbac-core</artifactId>
</dependency>
<dependency>
  <groupId>pro.shushi.pamirs.core</groupId>
  <artifactId>pamirs-auth3-ee-rbac-view</artifactId>
</dependency>

<!-- Remote Invocation (Publish and Subscribe to Dubbo Services) -->
<dependency>
    <groupId>pro.shushi.pamirs.distribution</groupId>
    <artifactId>pamirs-distribution-faas</artifactId>
</dependency>

2. Startup Acceleration Package, used to improve startup speed

<!-- Startup Acceleration -->
<dependency>
    <groupId>pro.shushi.pamirs.framework</groupId>
    <artifactId>pamirs-framework-turbo-ee</artifactId>
</dependency>

3. Packages related to distributed caching. After import, metadata is cached via Redis, which is suitable for scenarios where local projects and the designer are linked in real time

<!-- Distributed Caching -->
<dependency>
    <groupId>pro.shushi.pamirs.distribution</groupId>
    <artifactId>pamirs-distribution-gateway</artifactId>
</dependency>
<dependency>
    <groupId>pro.shushi.pamirs.distribution</groupId>
    <artifactId>pamirs-distribution-session</artifactId>
</dependency>
<dependency>
    <groupId>pro.shushi.pamirs.distribution</groupId>
    <artifactId>pamirs-distribution-session-cd</artifactId>
</dependency>

IV. IDEA Development Verification

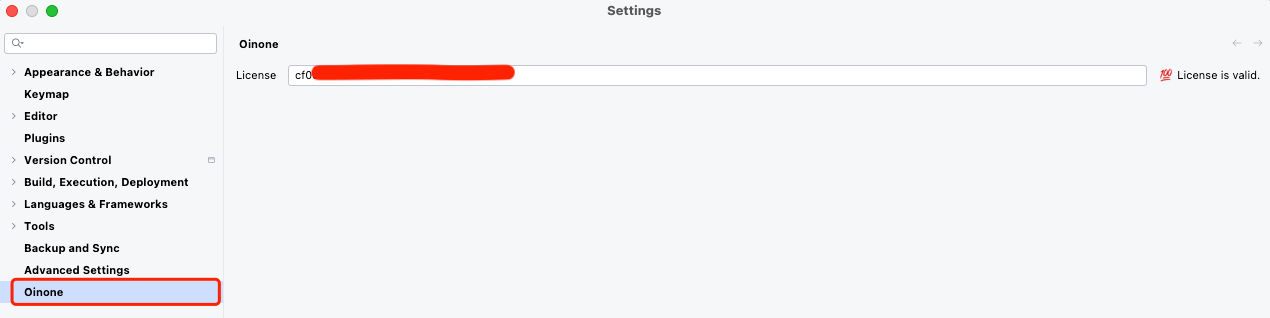

Verify the IDEA Development Certificate

Tip

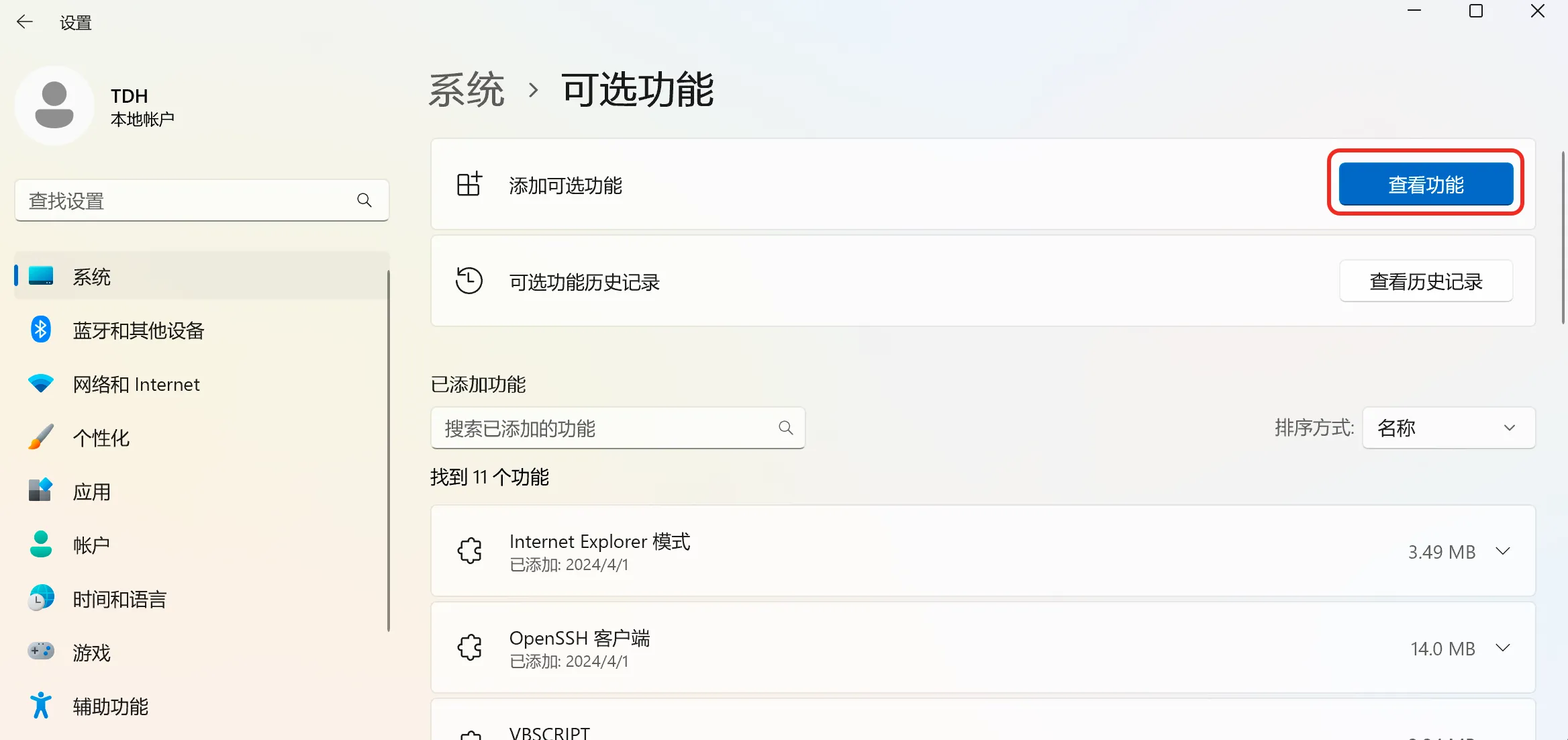

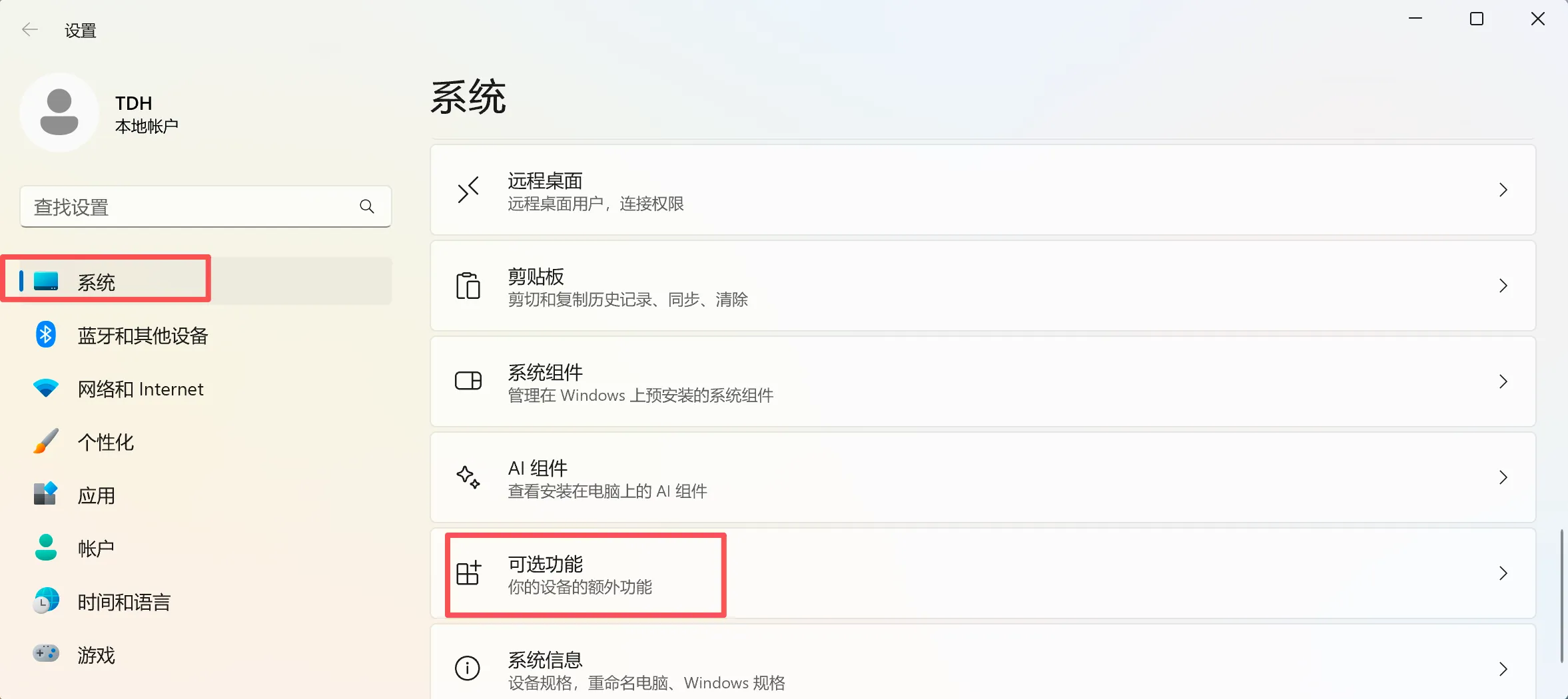

If the IDEA plugin activation fails on the Windows operating system (including no response when clicking Activate), you can first check whether WMIC is activated. If it is not activated, you can refer to the instructions in the figure below to install and activate WMIC.

V. Business Application YAML Modification

(I) Add License Configuration

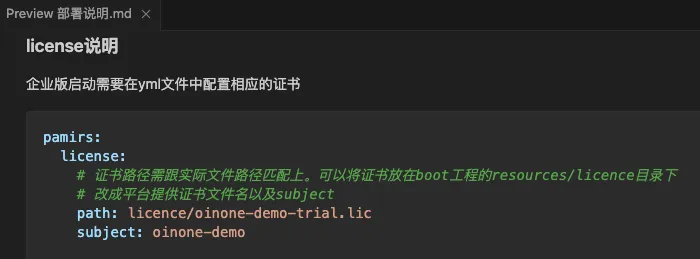

The License file is located in the "license" folder of the Enterprise Edition deployment package released by Shushi. For the configuration in the YML file, please refer to "Deployment Instructions.md";

(II) Middleware Configuration for Business Applications

The middleware (ZK/Redis/RocketMQ) configuration of the business system must be consistent with that of the deployed Enterprise Edition designer;

(III) Database Configuration for Business Applications

The database configuration of the business system must be consistent with that of the deployed Enterprise Edition designer;

(IV) New Configuration for Business Projects

logging:
  level:
    org.apache.dubbo.registry.client.metadata.store.RemoteMetadataServiceImpl: off

Tip

Inconsistent middleware and versions under the same base database and same Redis will cause startup verification failure.

VI. Startup/Experience

Now you can enjoy the Oinone Enterprise Edition happily 😀.

VII. Reference Materials

Common Issues with Backend Deployment and Startup
